Power Method

DC 9V=0.6A
Passive PoE

Passive PoE power supply

Up to 40 meters Passive PoE is supported(cat5e or up)

Hardware Deployment

Desktop/Wall Mount

Video user capacity

5

wireless users capacity

20+

Diagostic

Wireless site survey
Ping
Traceroute

Network Service

Schedule Reboot
Http/Https

Managed by AC

AC500

Reception Sensitivity

b mode： 1M -89dBm@8%
11M -87dBm@8% PER
g mode： 54M -74dBm@8% PER
n mode： 72.2M -72dBm@8% PER
150M -70dBm@8% PER

LED indicator

SYS,WPS,Bridge,WiFi,LAN1,LAN2

Frequency

2.4GHz-2.483GHz

LAN Settings

Static IP
Dynamic IP

DHCP Server

DHCP Server
Clients list

Wireless Rate

11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

Operating Mode

Access Point
Universal Repeater
Station(Client)
WISP (Client+Router)
Client+AP

Wireless Function

8 SSID
Enable/Disable Wireless Radio
Broadcast SSID
SSID Hidden automatically when exceed client limit
Client limit for SSID
Transmission output power
AP isolation
RSSI threshold for wireless clients
WMM capable
APSD capable
Access control based mac address
Wireless Client list
VLAN for multi SSID

Wrieless Security

64/128 WEP WPA-PSK WPA2-PSK WPA&WPA2-PSK WPA WPA2

VPN Pass-through

PPTP L2TP

Management Tool

Reboot
Restore to factory default
System Log
Firmware update
Time&Date Setting
Backup/Restore Configuration
Username Managerment

Package Content

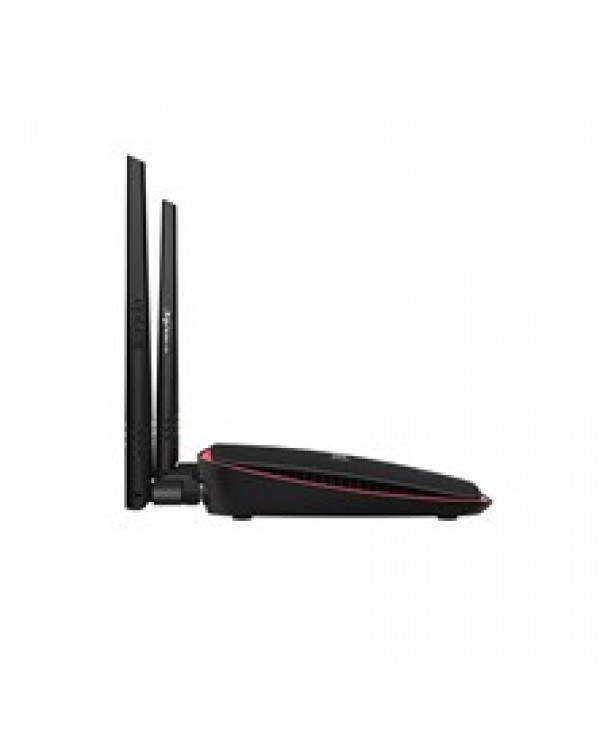

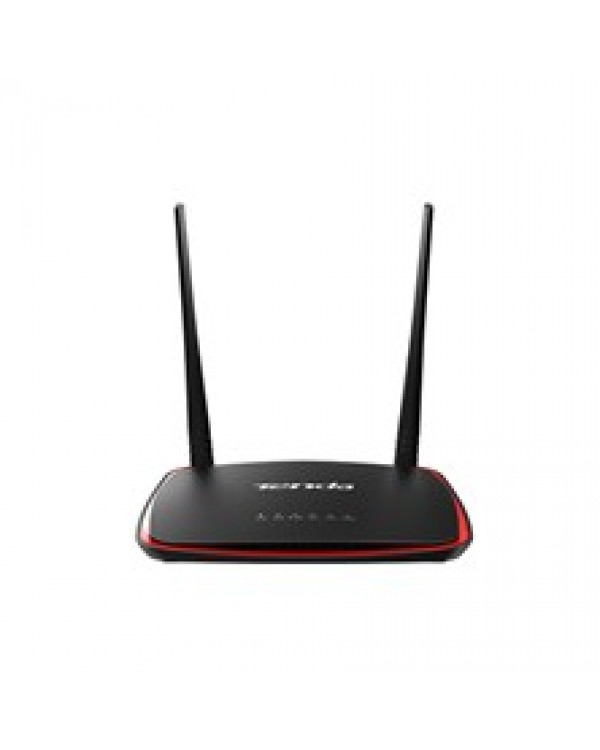

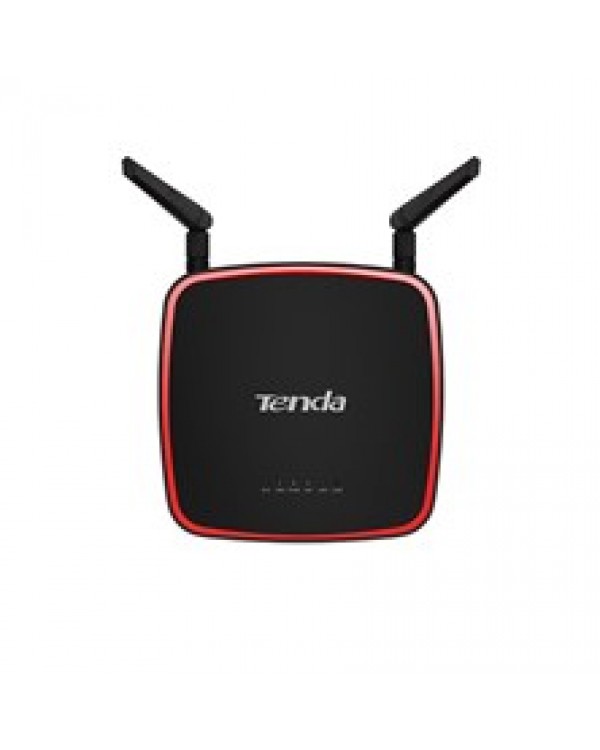

300Mbps Wireless N Access Point AP4
1*PoE Injector
1*Quick Installation Guide
1*Ethernet cable
1*Power Adapter
2*Screws
2*Plastic Bolt

Temperature

Operating Temperature:-10℃~45℃
Storage Temperature :-30℃~70℃

Humidity

Storage Humidity:5%~90% non-condensing
Operating Humidity:10%~90% non-condensing

Default Settings

IP Address: 192.168.0.254 Login Username:admin Login Password:admin

Certification

FCC/CE/Rohs/VoC

Button

1*Reset 1*Range Extender

Antenna

2*5dBi Detachable Omni Directional (RP-SMA)

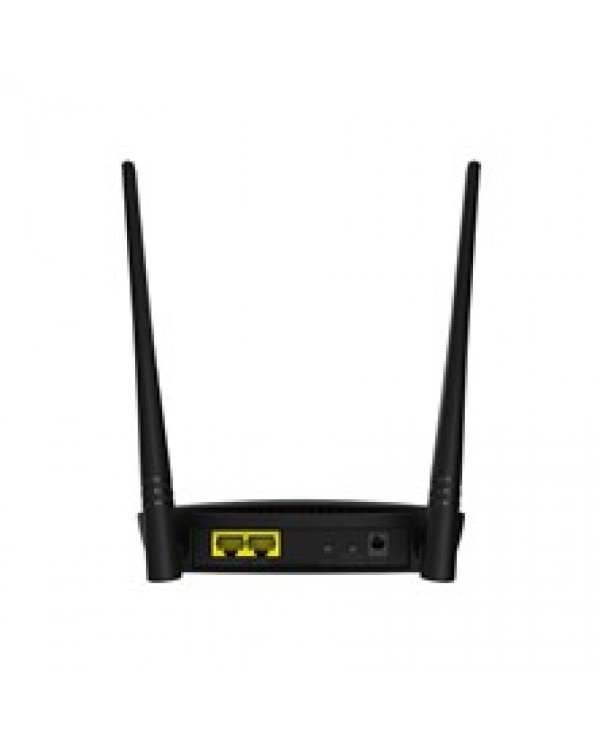

Interface

2 * 10/100M Ethernet Port (RJ45)

Standard&Protocol

IEEE 802.11n/g/b

Dimension

148*146.2*31.5mm
